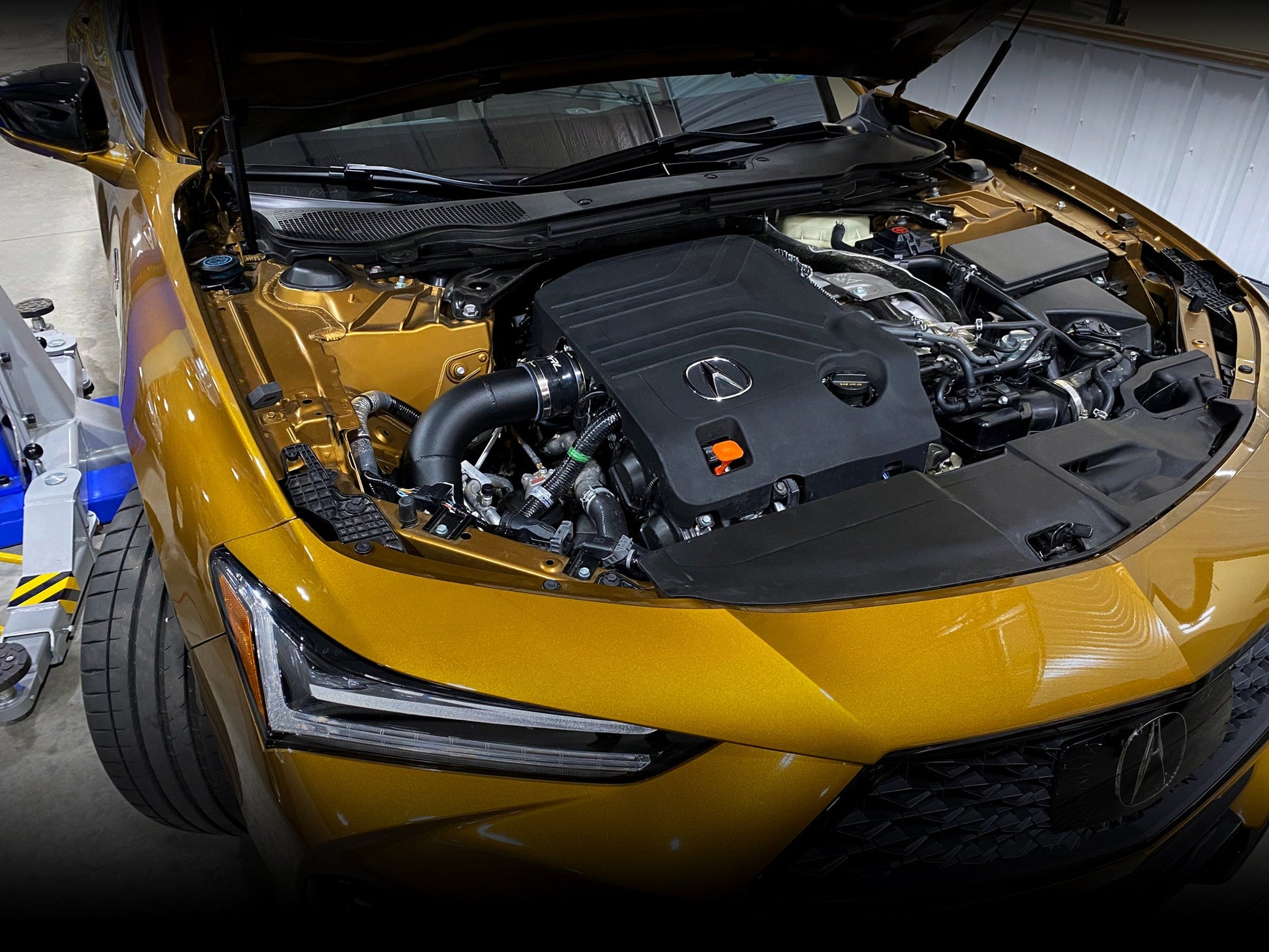

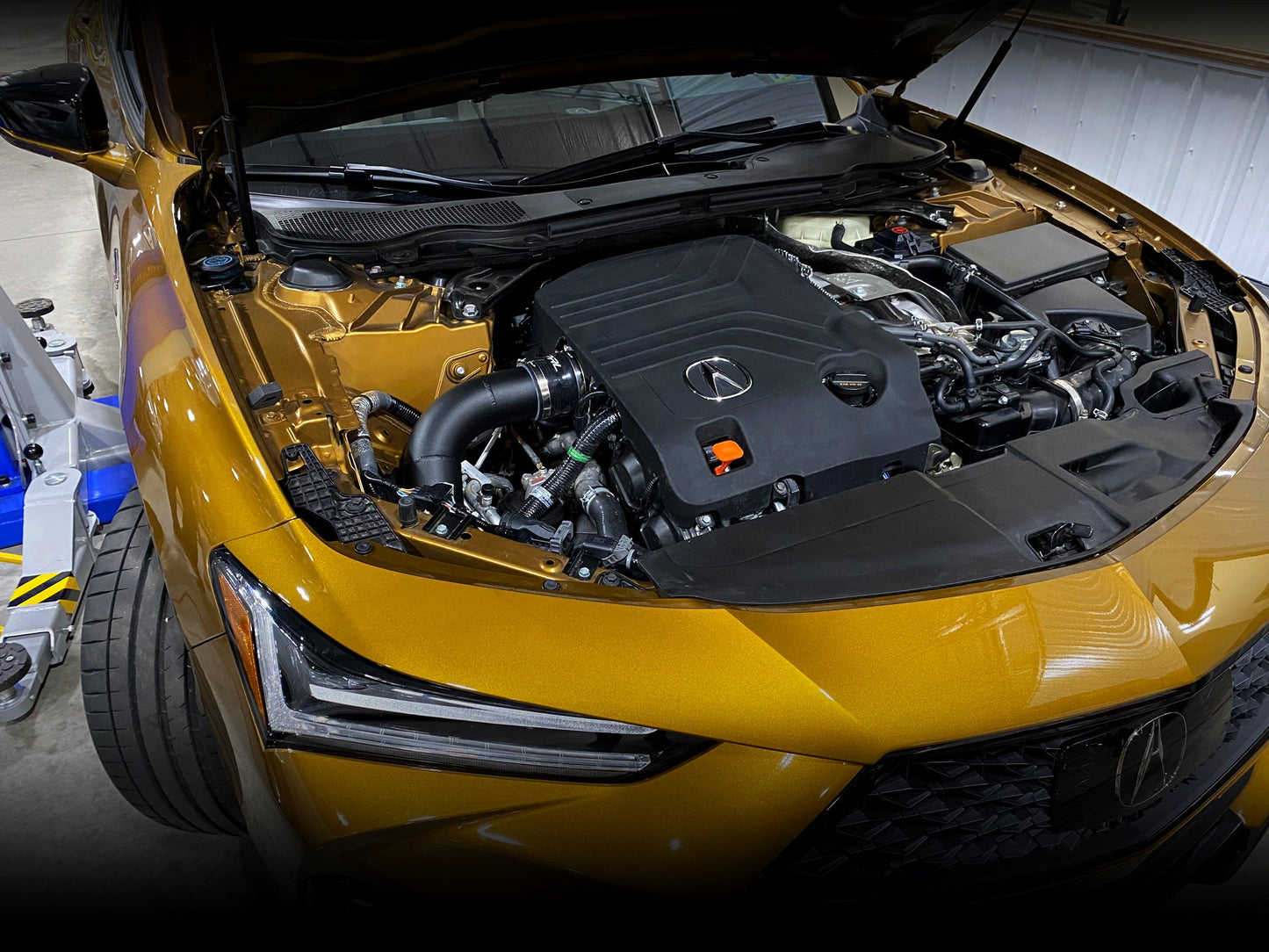

2021+ Acura TLX Type-S Intercooler Charge Pipe Upgrade Kit

Fits all 2021 Acura TLX Type-S 3.0T
Fits all variant models including RHD, International Models, Etc.



INSTALLATION:

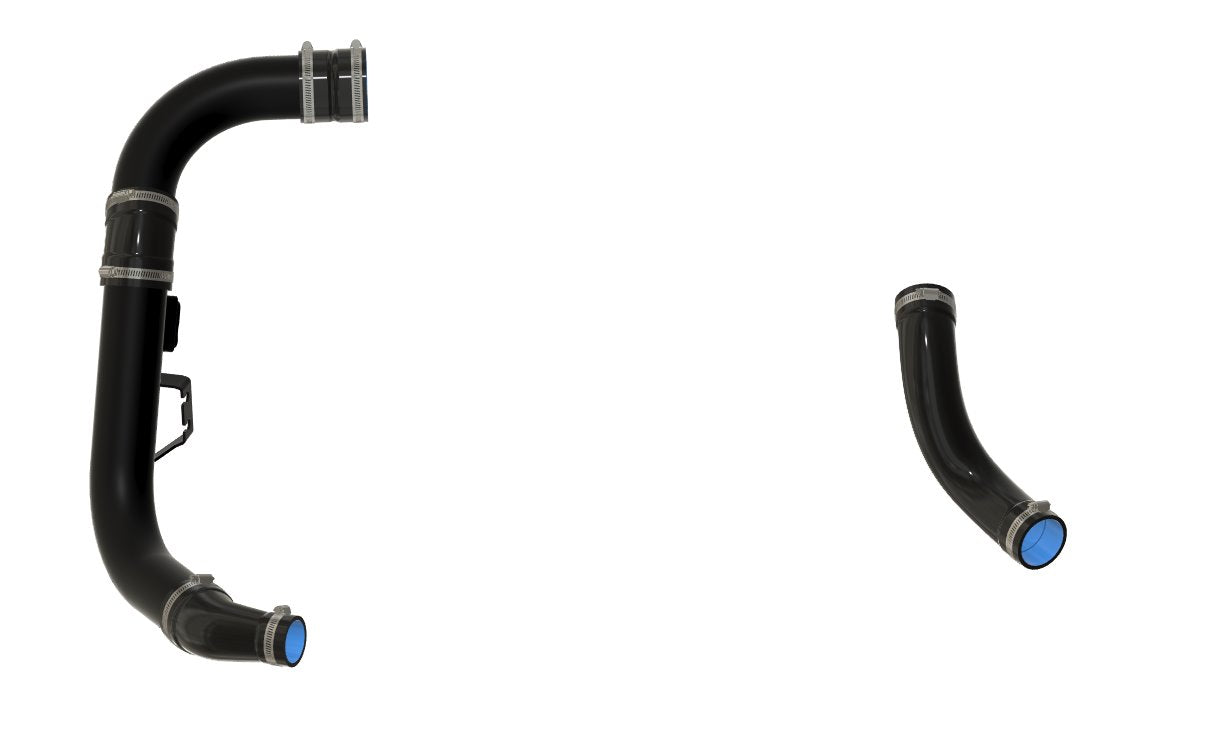

Our charge pipe upgrade kit utilizes a smooth flowing, larger diameter (3.00" OD in comparison to the factory ~2.40" ID hose) cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:

1. Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.

2. Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).

3. Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.

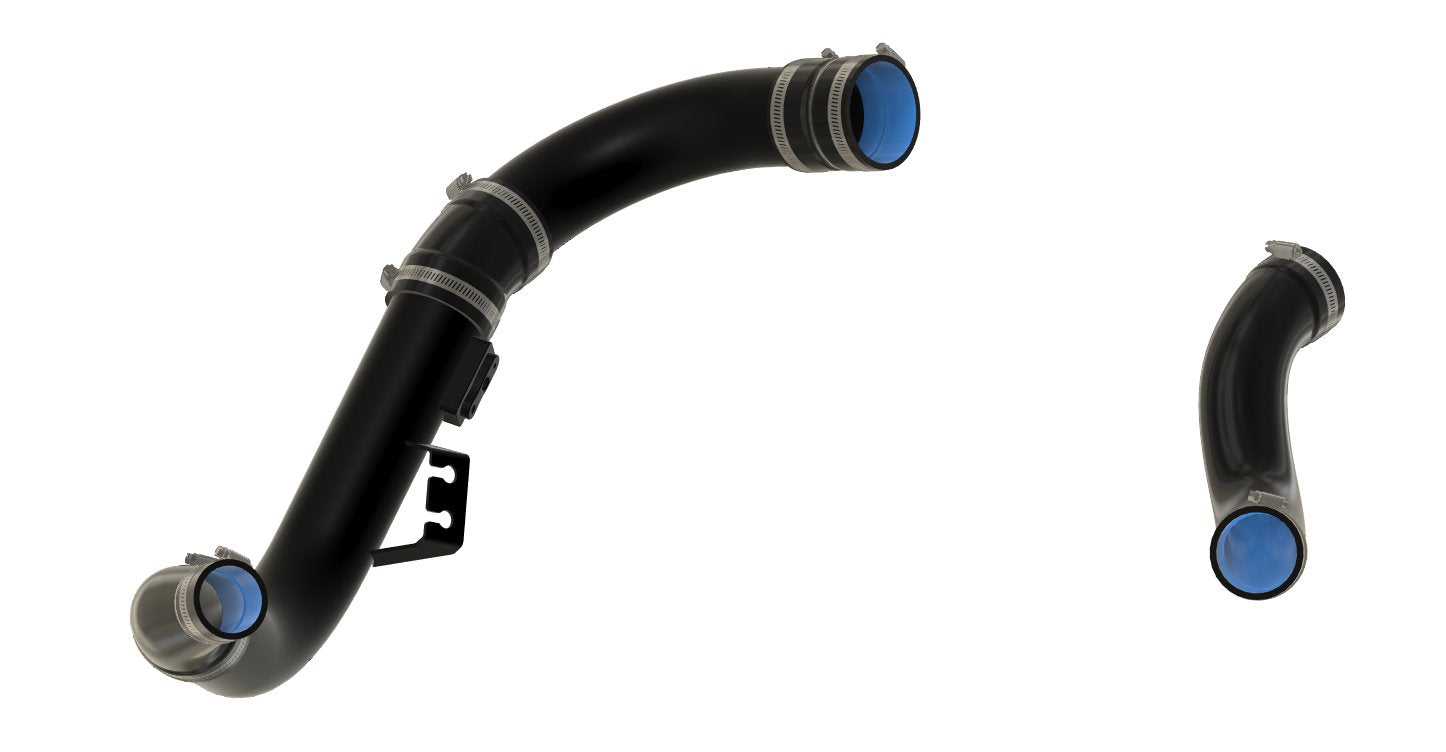

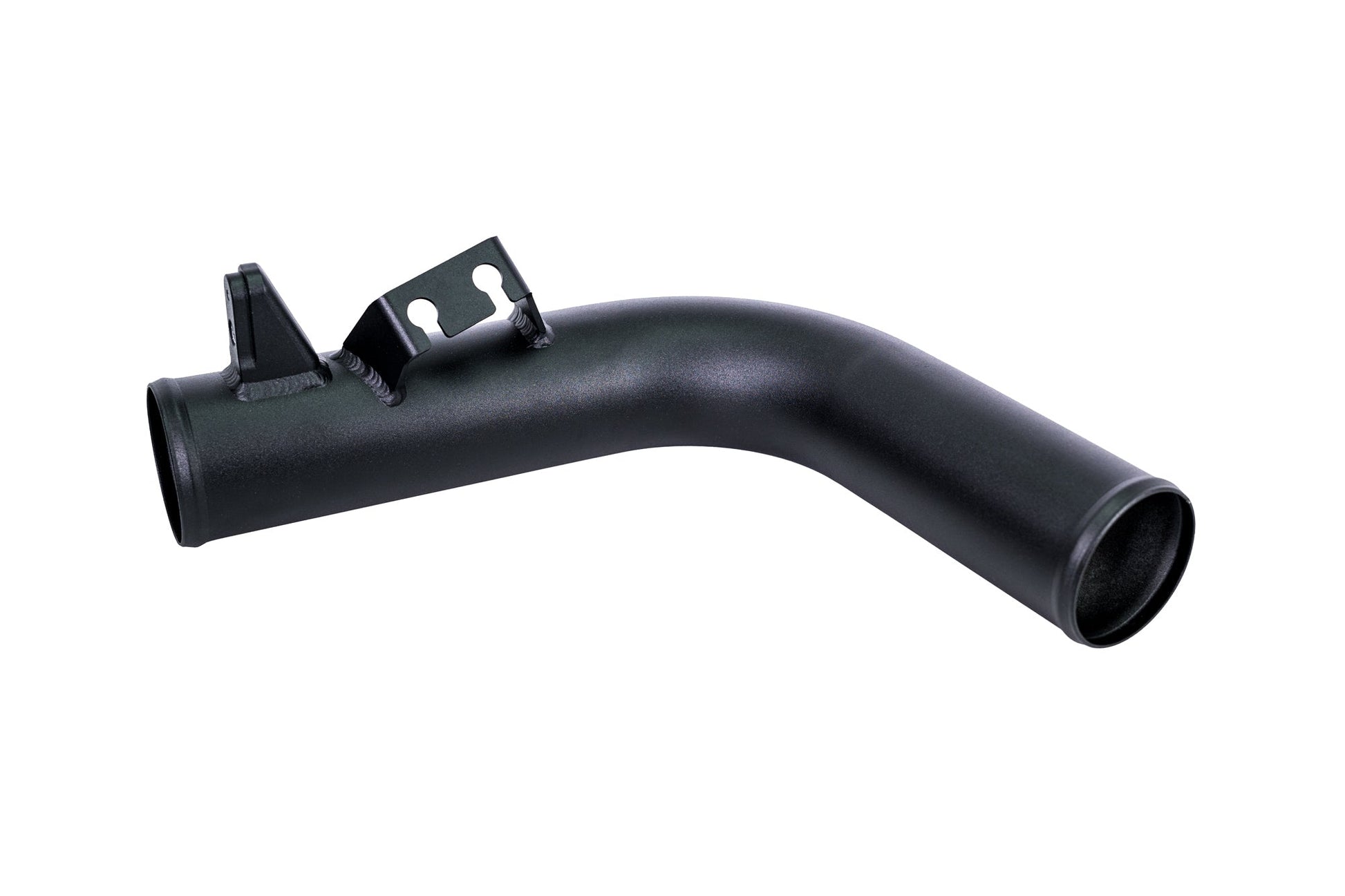

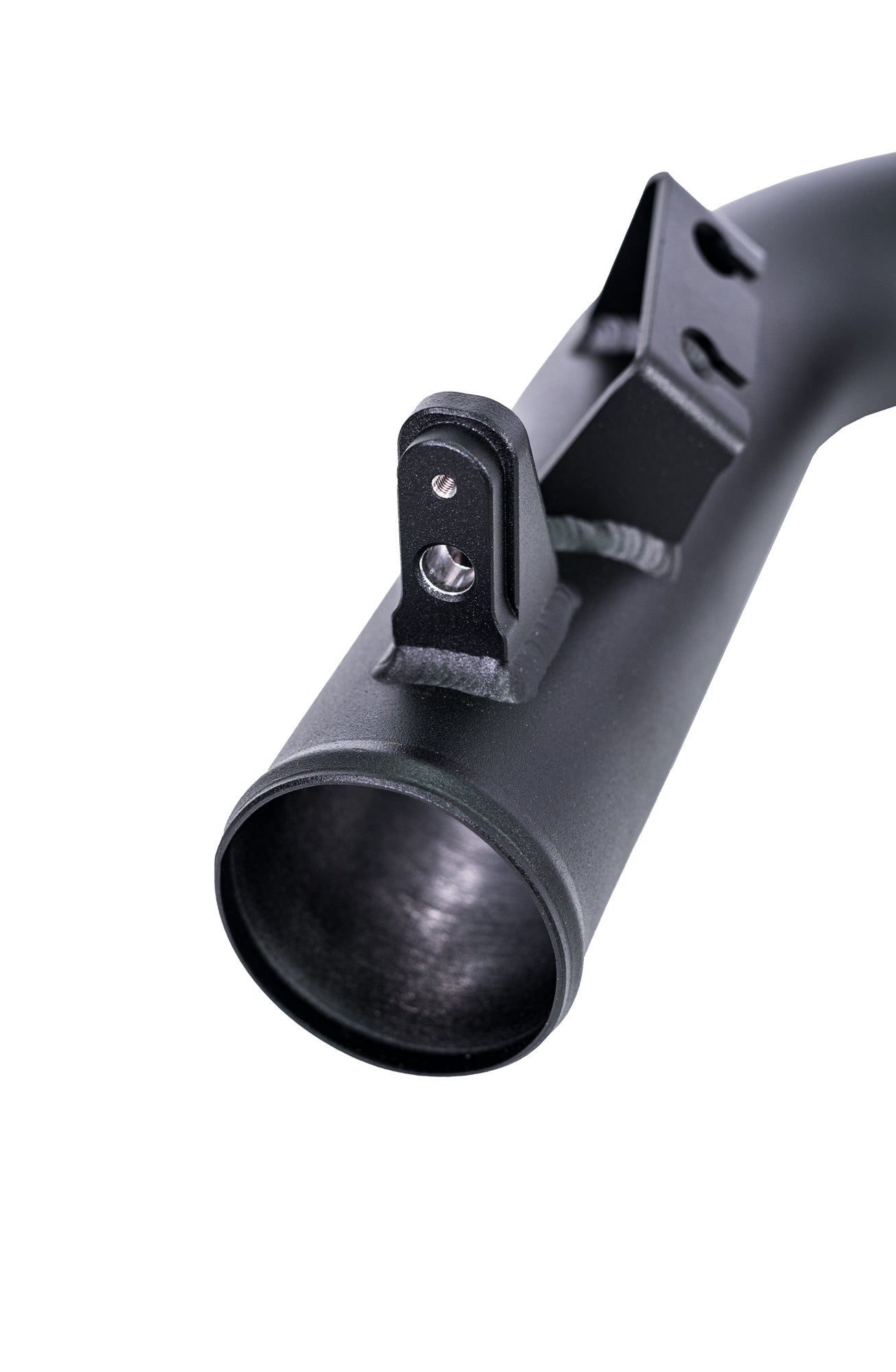

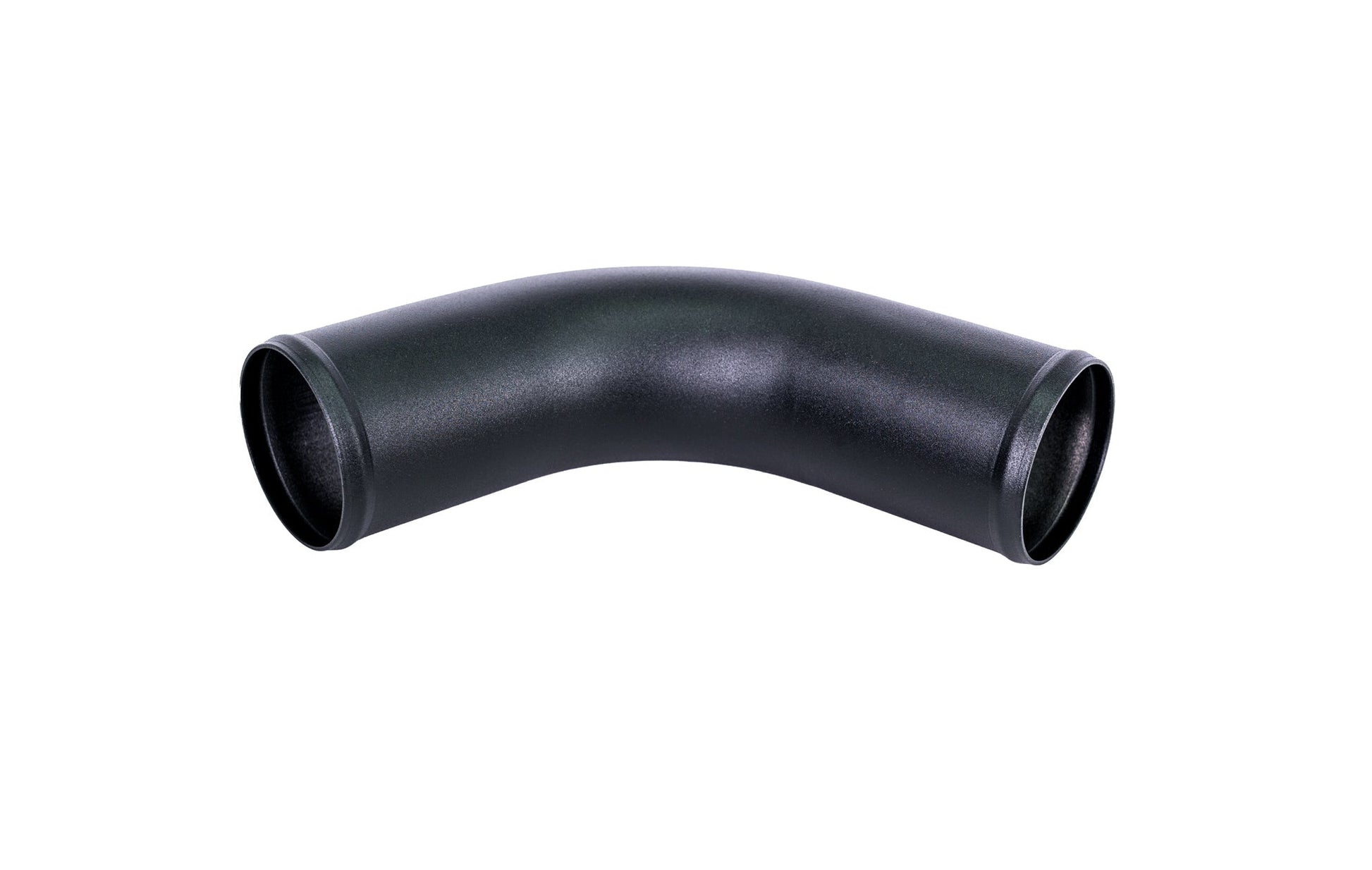

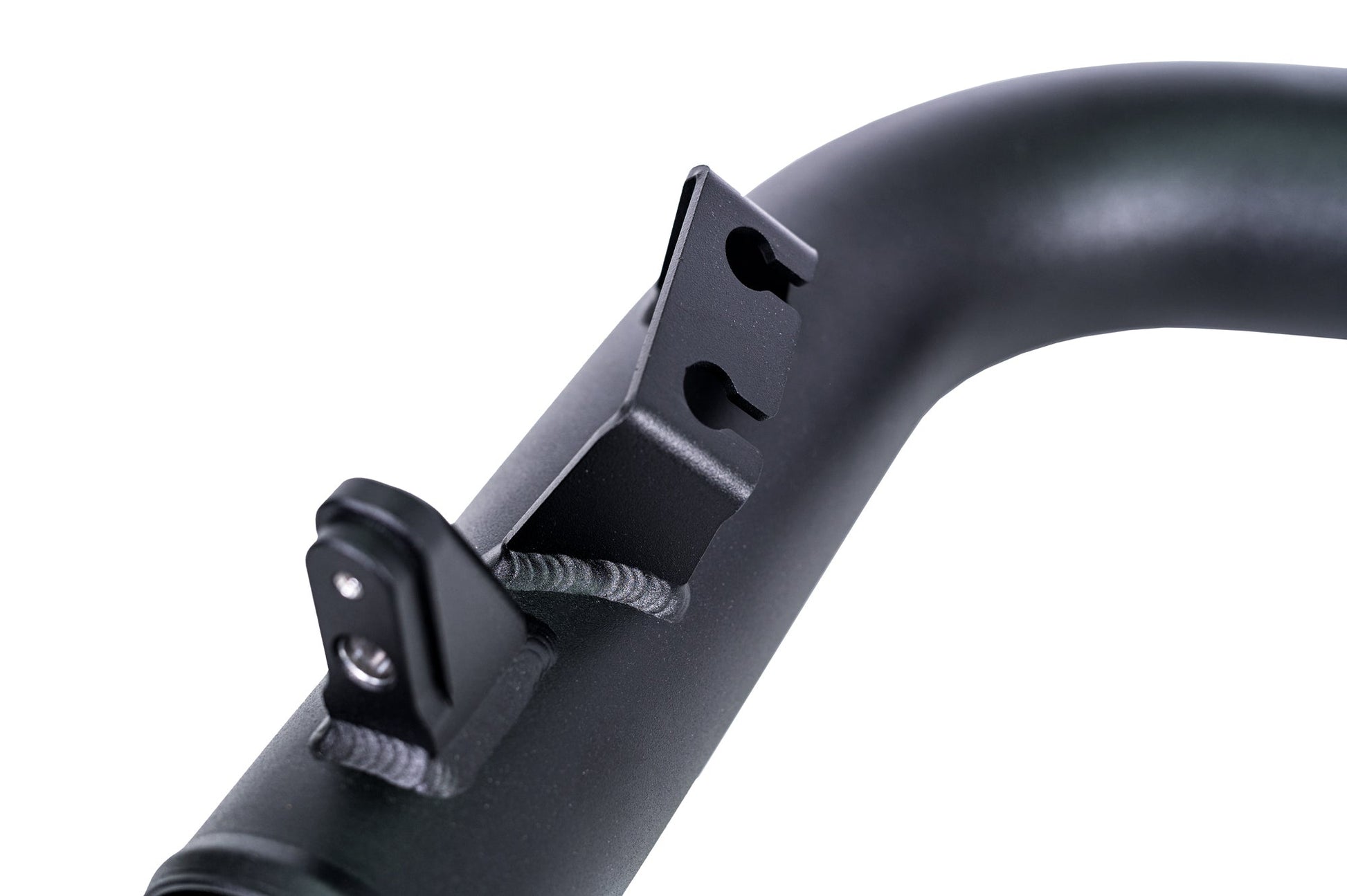

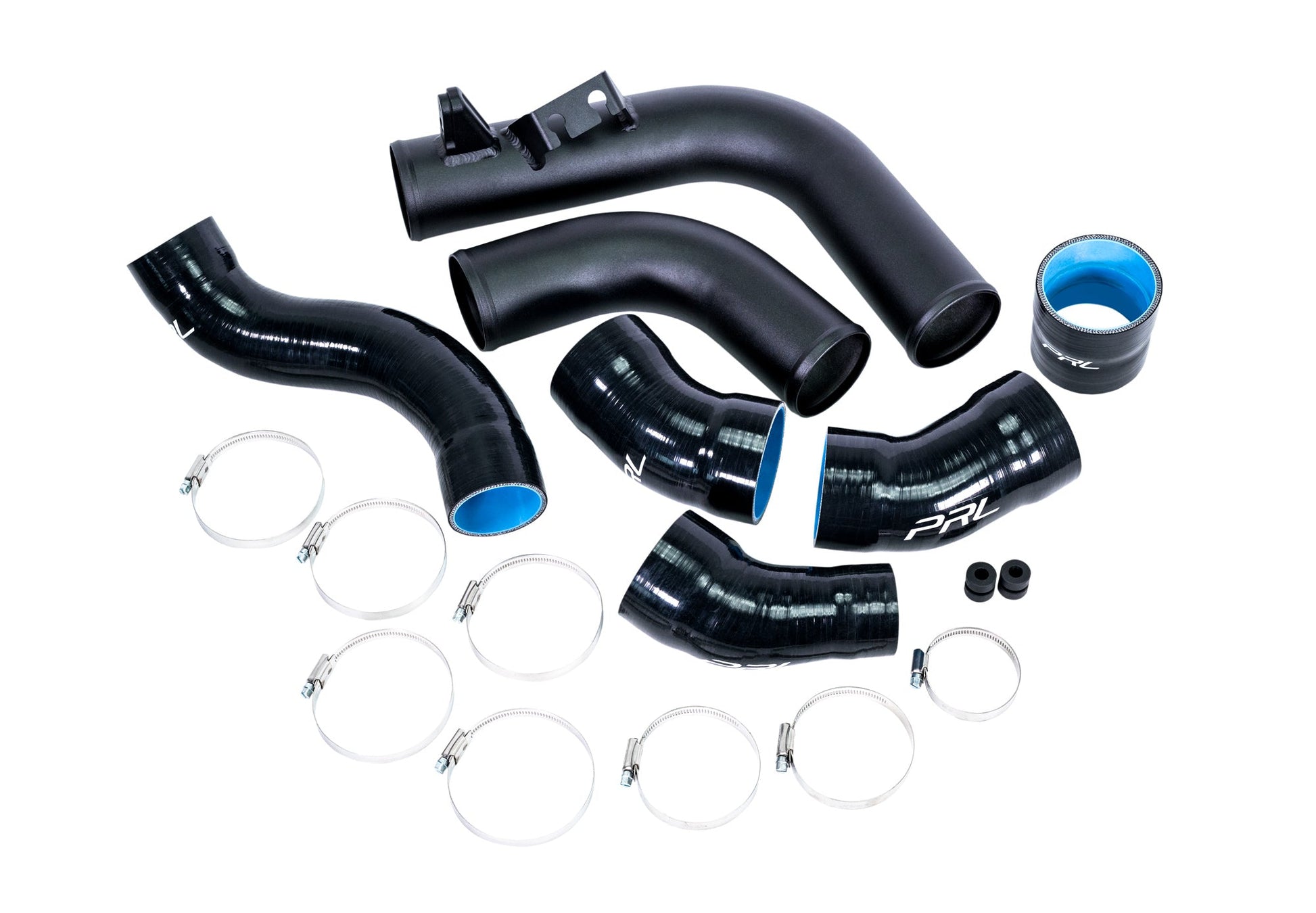

• (2) aluminum charge pipe, powdercoated wrinkle-black
• (1) 1/8" NPT auxiliary service port

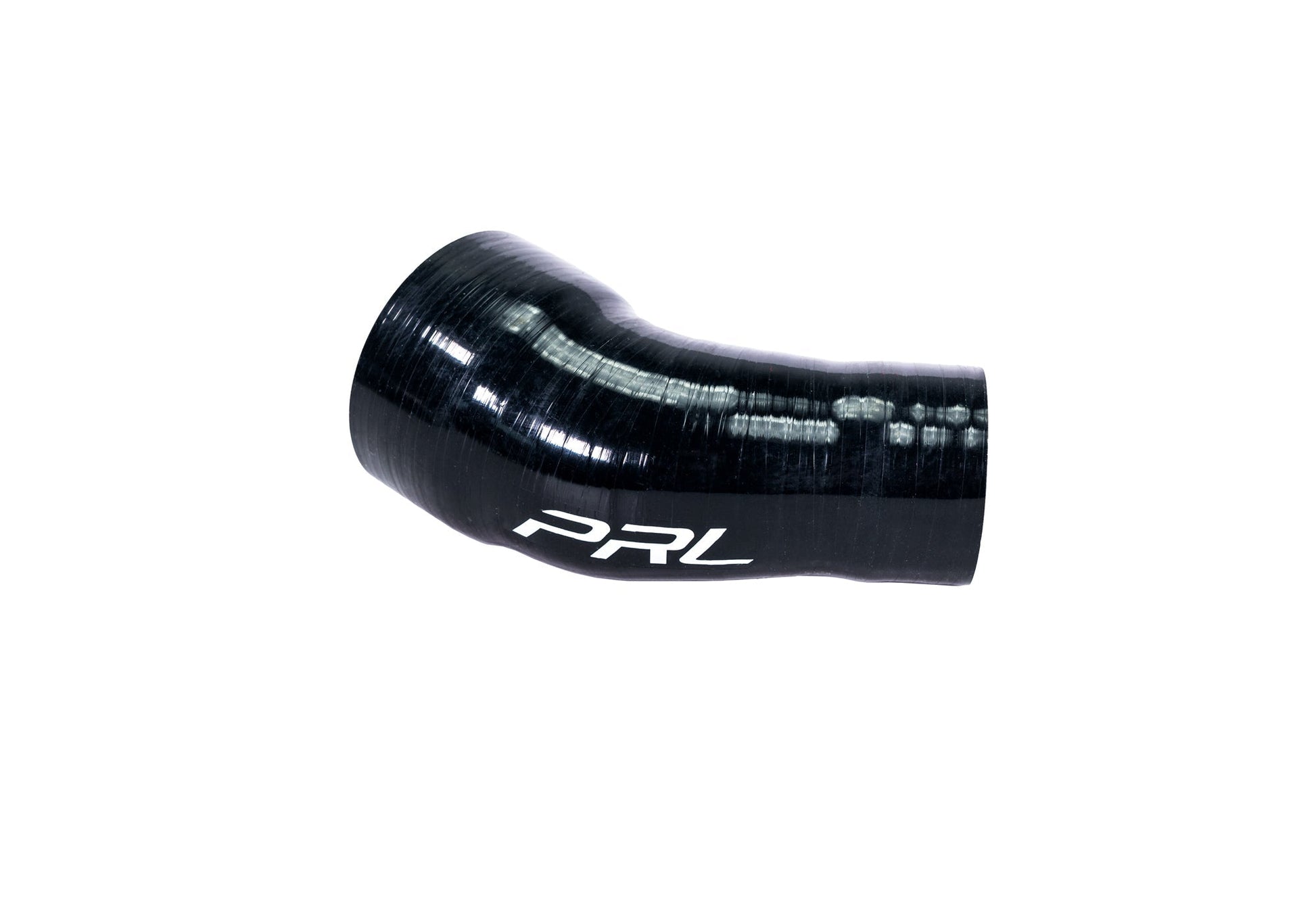

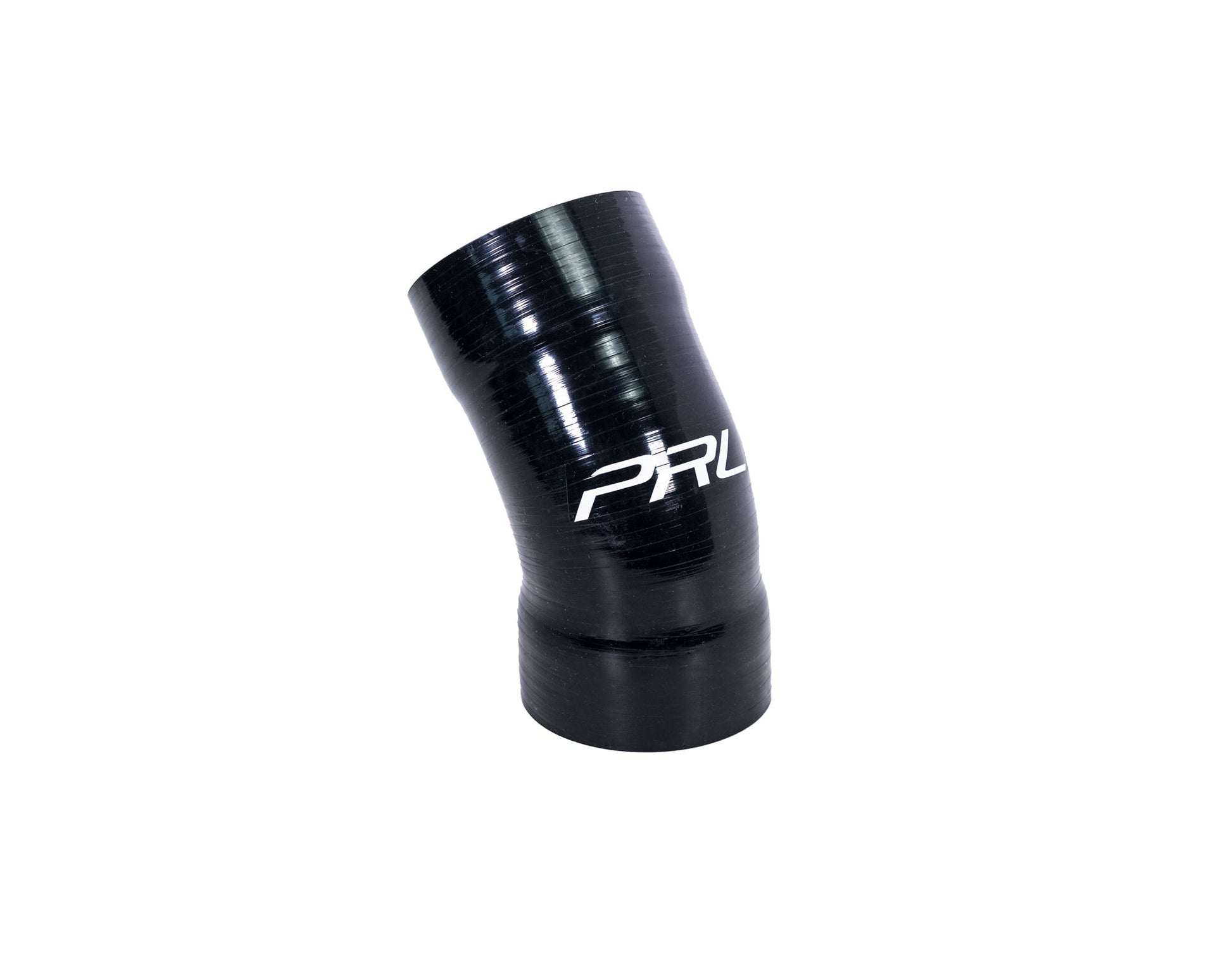

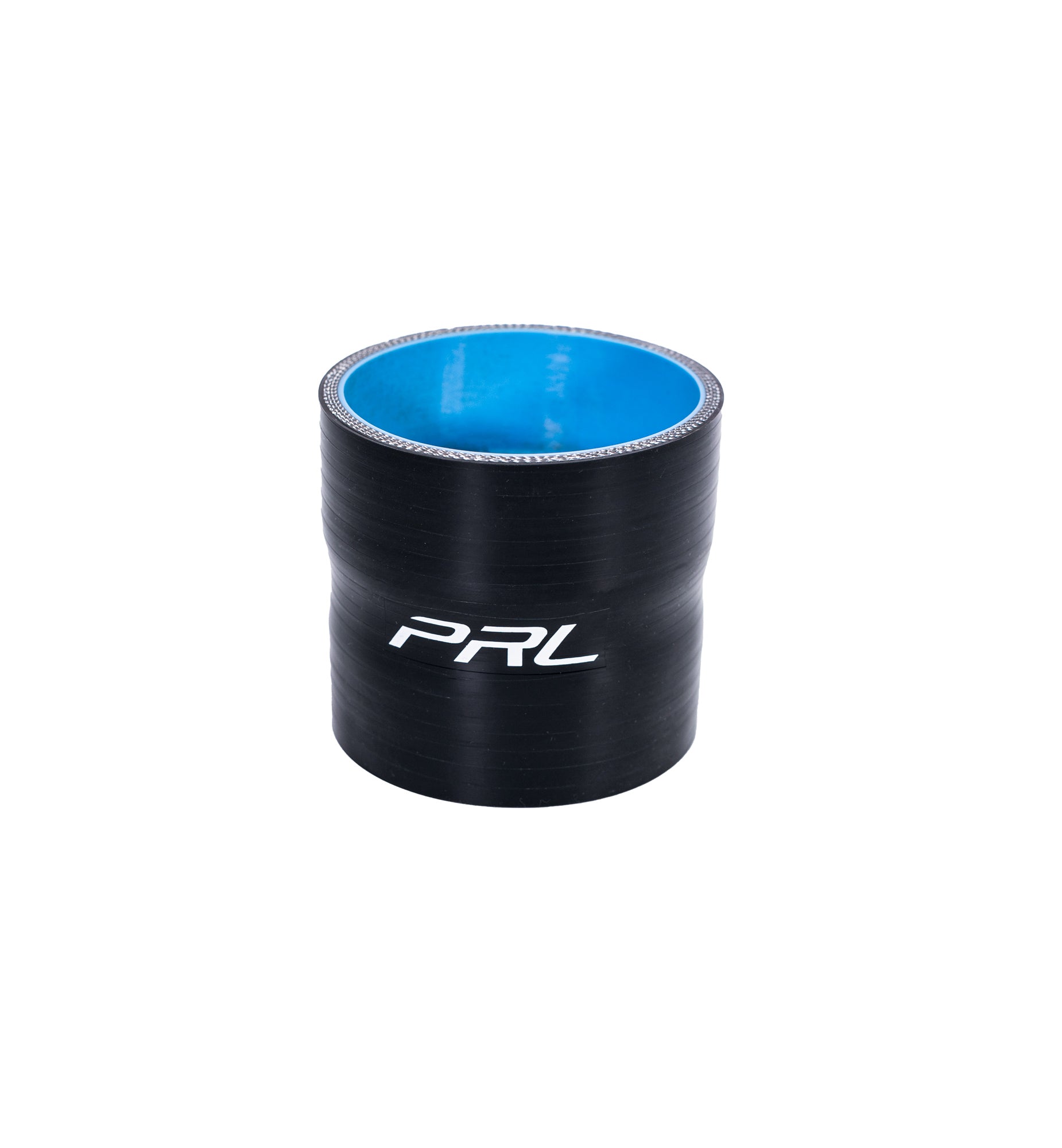

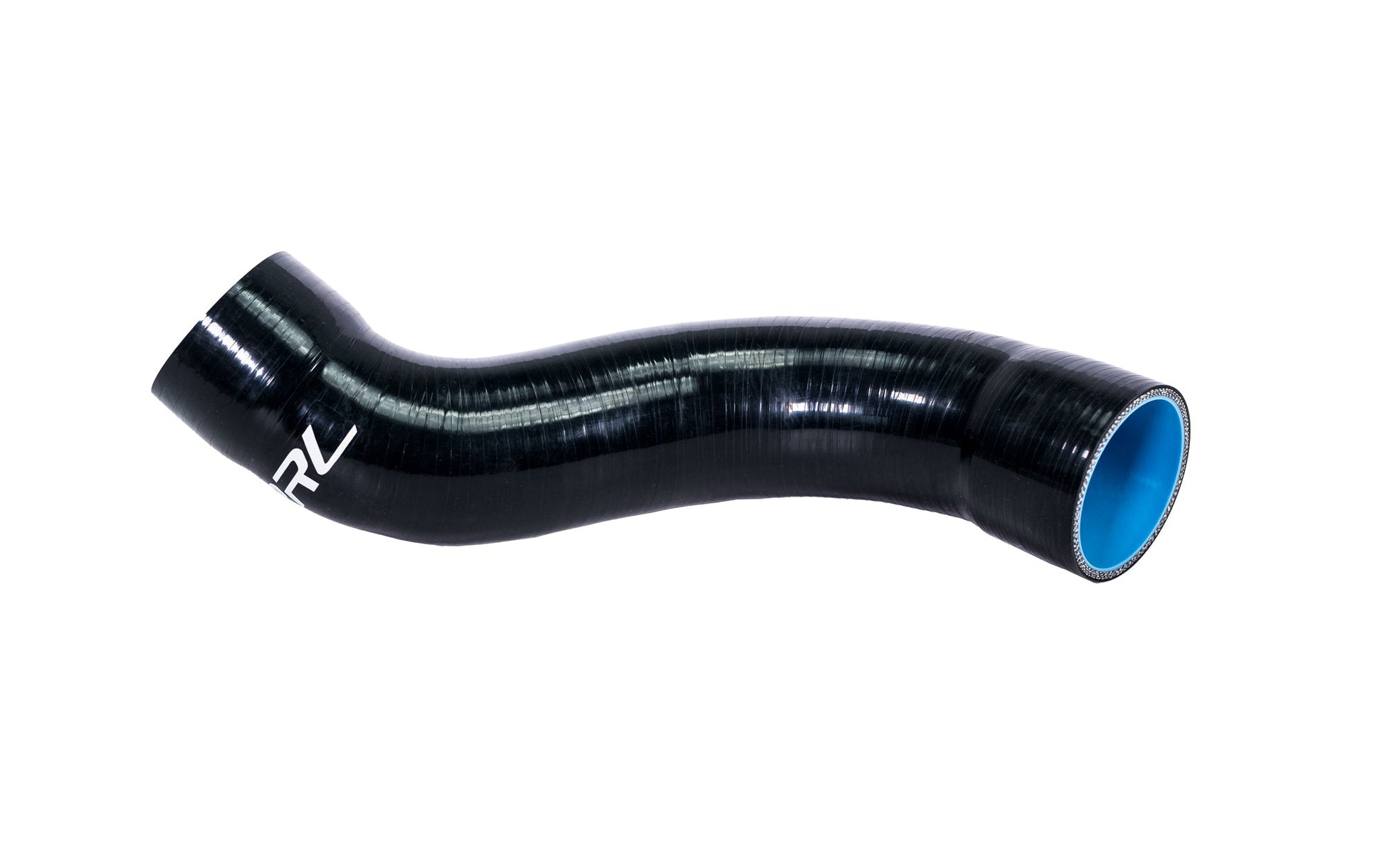

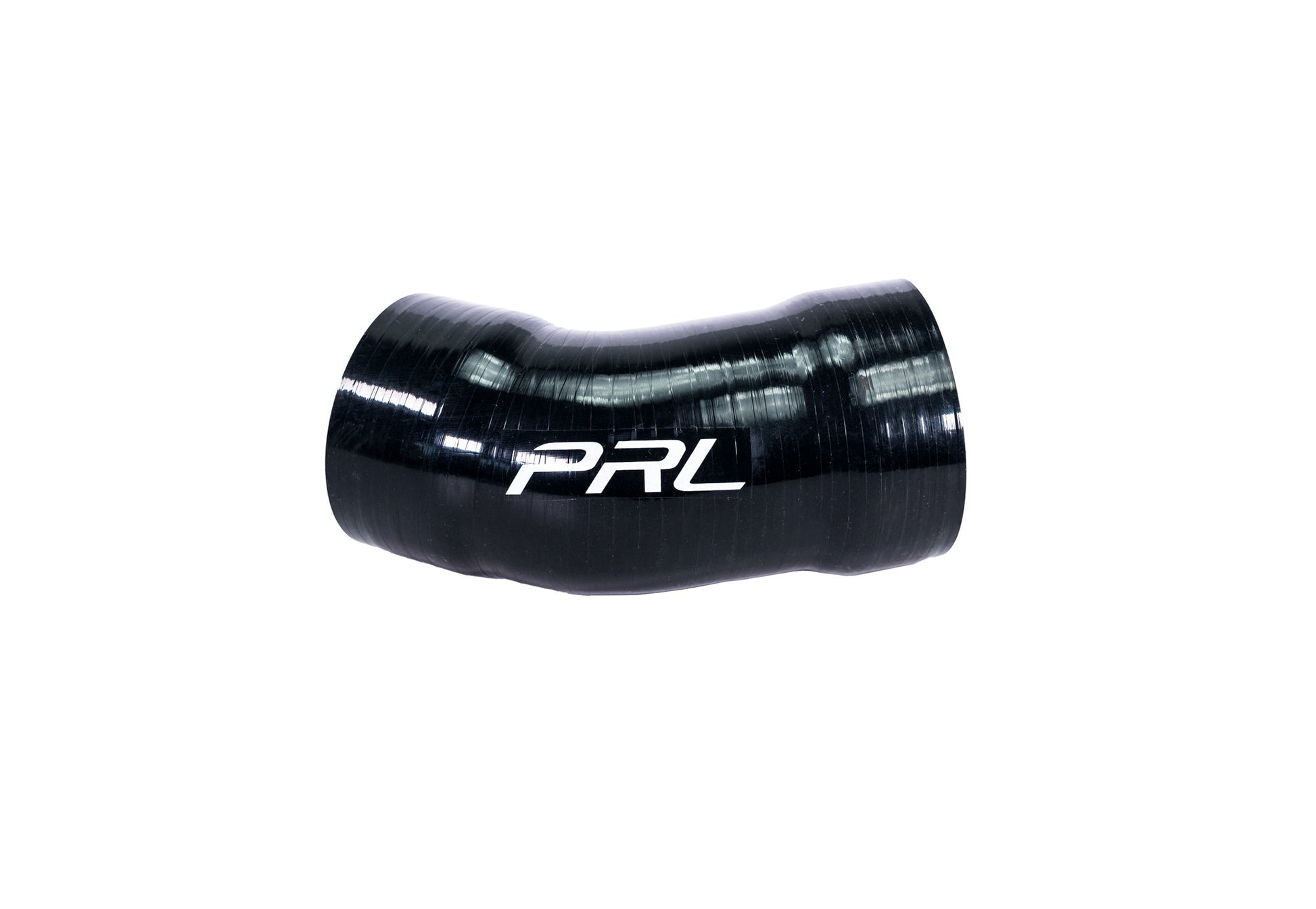

• (5) 4-ply silicone couplers

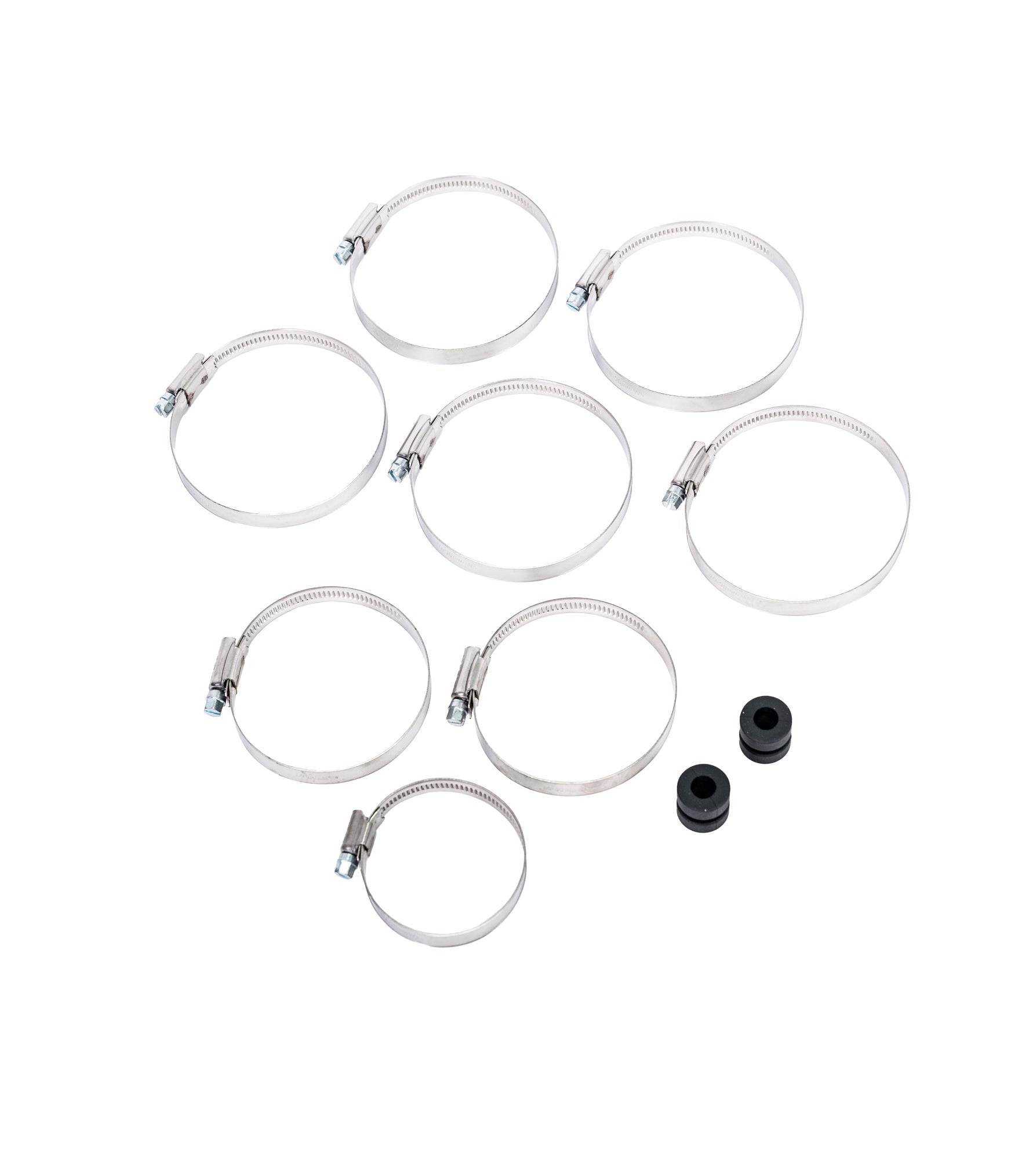

• (8) 304 stainless steel lined clamps
• All hardware needed for install
