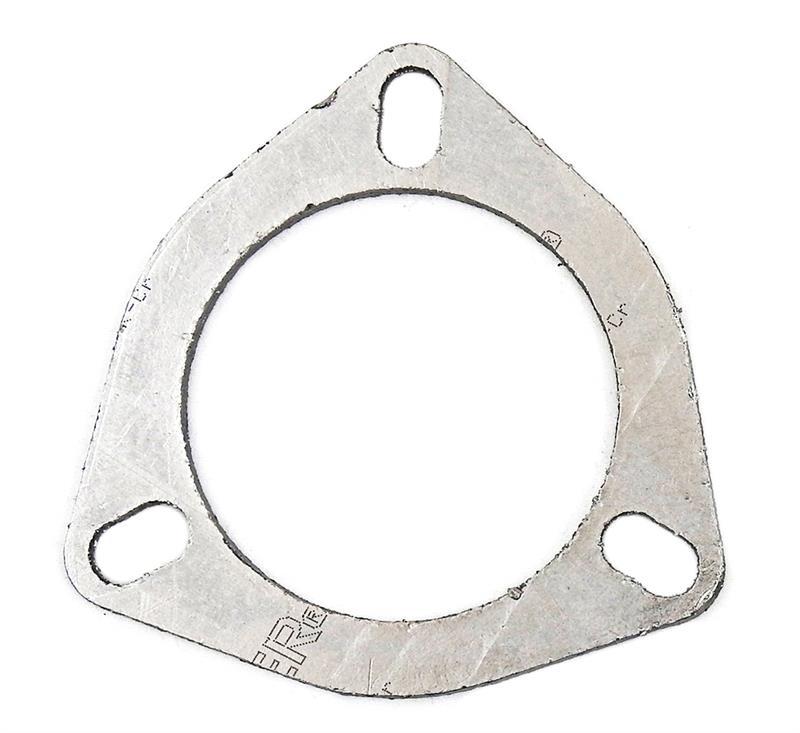

Honda Exhaust Gasket

Important Notes:

• Located between downpipe and catback exhaust on 2006-2015 Honda Civic Si 3" downpipes
• Located between front pipe and catback exhaust on 2016-2021 Civic applications (Including 2017-2021 FK8 Type-R)
• 3" ID Bore

Technical Notes:

• KLINGER® Graphite Laminate SLS consists of expanded layers of graphite, which are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401. The adhesive layer is applied via a precisely controlled process, which makes it possible to keep the amount of adhesive below 1% of the amount of graphite in order to ensure uniform distribution of the adhesive.
• Especially suitable for weak flanges at high temperatures up to 450°C.
• The gasket material consists of expanded layers of graphite, which are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401. The adhesive layer is applied via a precisely controlled process, which makes it possible to keep the amount of adhesive below 1% of the amount of graphite in order to ensure uniform distribution of the adhesive.
• Excellent chemical resistance
• Excellent high temperature resistance
• Provides excellent adaptability to any sealing surface
• Seals irregular flanges
• Conforms easily
• Stable physical properties over the whole temperature range

Each gasket is stamped from KLINGER® GRAPHITE LAMINATE SLS, which offers excellent sealing properties for flanges throughout a wide variety of temperatures.
