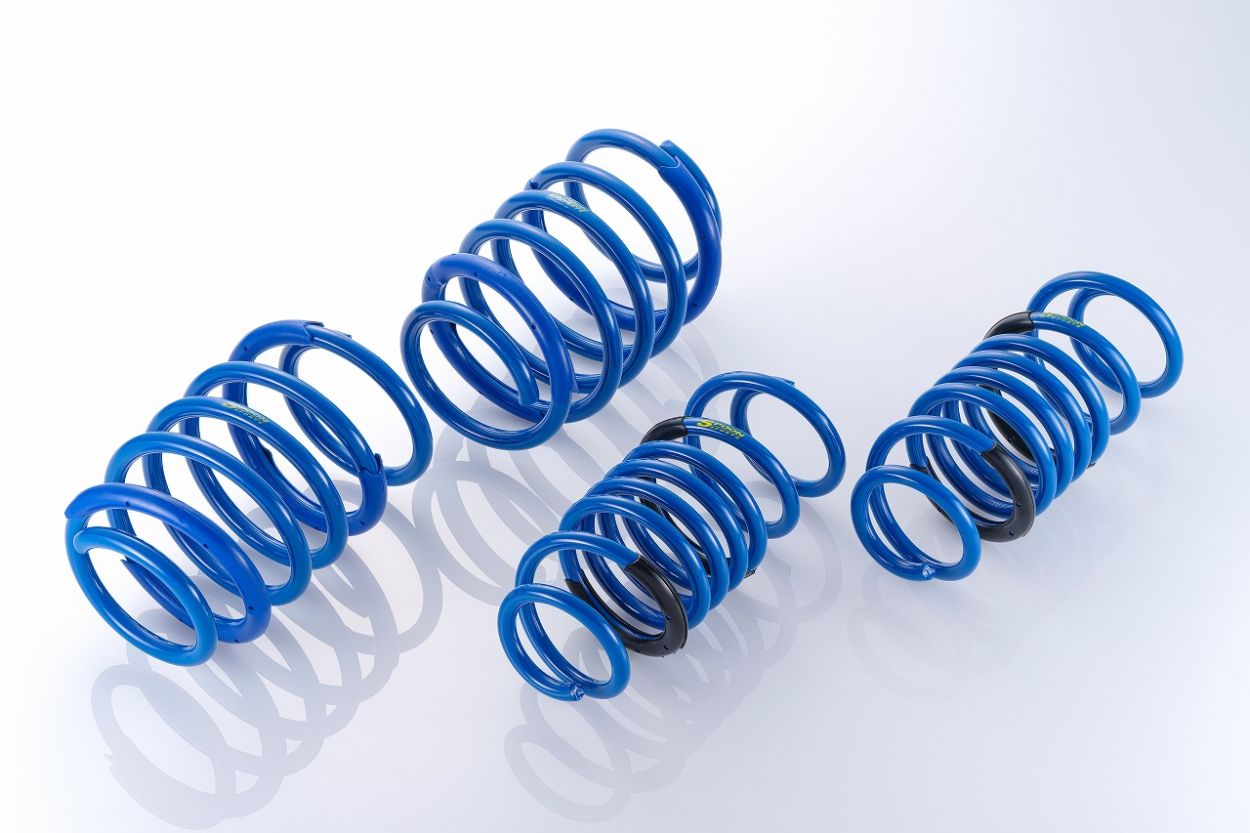

Spoon Sports Progressive Lowering Springs for 2023-2024 Honda Civic Type-R FL5 | 2024-up Integra Type-S

2023-2024 Honda Civic Type-R FL5

2024-up Integra Type-S

Spring Rates: Front 5.5 kgf/mm, 5.0 kgf/mm
Lowers 20mm Front and Rear

In order to understand the potential of the world’s fastest FF sports car, Spoon Sports had tested the stock CIVIC Type R on the race track, the winding roads and the streets of Japan.  They had noticed the aggressive suspension set up of the stock vehicle with very high roll rigidity potential.

However, on the track, the roll initiated with a slight delay which prevented the driver to smoothly trace the intended cornering line at entry. Meanwhile, the ride was a little too harsh for street driving.  At this point, the goal was clear.  It is to develop progressive springs to improve performance driving at all stages, allowing the driver to trace the ideal cornering line, yet deliver comfort on the street.

To improve sports driving performance, Spoon Sports had increased the spring rate by 10% relative to stock for better suppleness going over road gaps and to secure more rebound stroke.

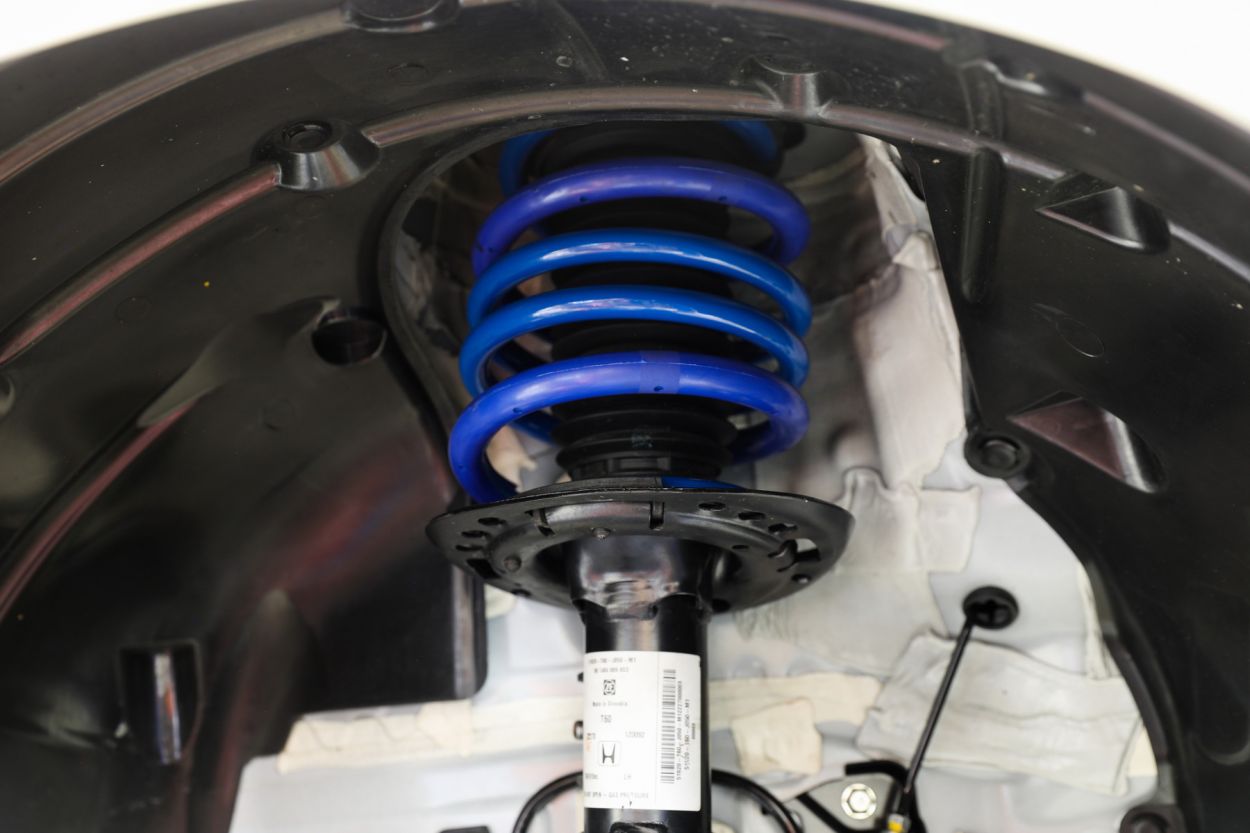

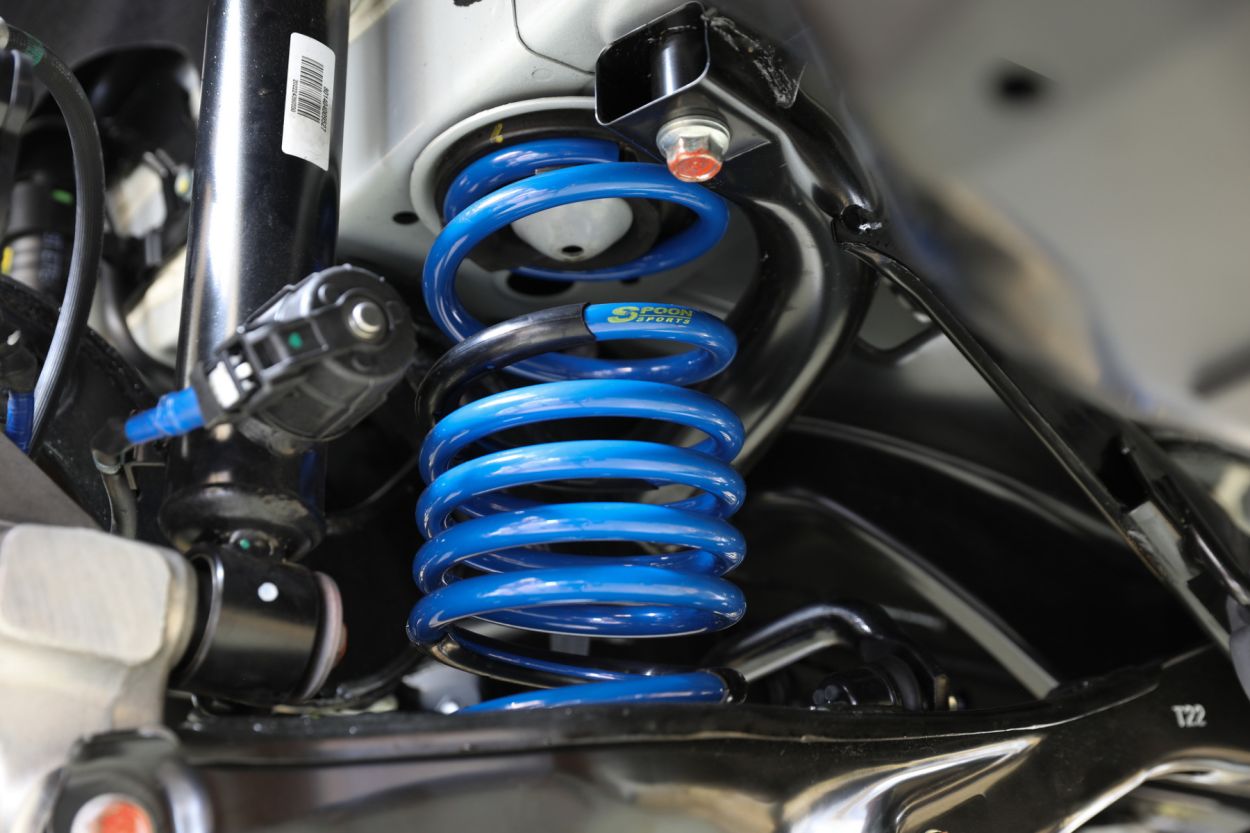

Installation of the Spoon Progressive springs will bring the car down by approximately 20mm for lower center of gravity.

The development team at Spoon Sports also worked hard to improve ride comfort.  They had increased the coil therefore extending the length of the spring and lowered the required load to initiate the response of the spring. The response rate was fine tuned by implementing an irregular-pitched spring having a barrel-shaped cross section profile.
The lowered load requirement to initiate spring response improved ride comfort for street use, while the progressive spring rate delivers traction for higher speeds and spirited driving.

The SPOON SPORTS Progressive Spring Set enhances the driver’s ability to control and enjoy the true potential of the CIVIC Type R.
